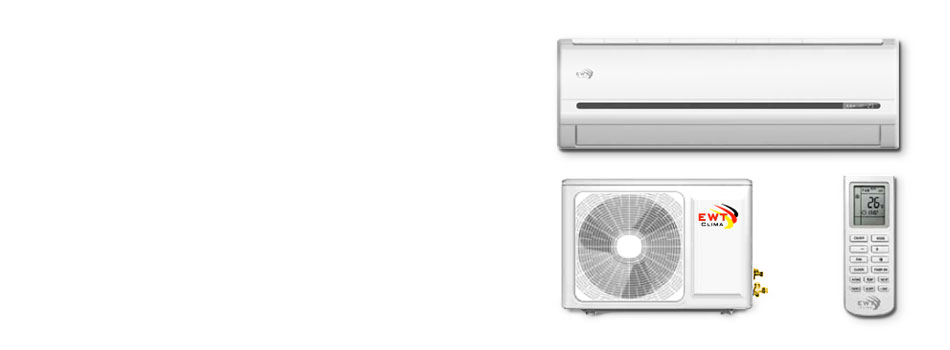

EWT Clima G-072GS / G-092GS / G-122GS / G-182GS / G-242GS

Wall Split Standard

the optimal choice for standard apartments: provide comfort and air quality, compact and reliable!

---

FEATURES AND OPTIONS:

• Perfect quality at a reasonable price
• Compact and reliable
• Highly efficient dual filter
• Compressor Gree

---

Air cleaner:

• Charcoal filter (included)
• Catechin filter (included)
• Filter with silver ions (optional)
• Photocatalytic filter (optional)
• Anti-bacterial filter (optional)

---

Specifications

Model			G-072GS	G-092GS	G-122GS	G-182GS	G-242GS
Cooling capacity		Btu / h	6998	8500	12000	15354	21001
		W	2051	2638	3224	4500	6155
Heat productivity		Btu / h	7199	9400	13600	16378	22860
		W	2110	2814	3370	4800	6700
EER/C.O.P.		W/W	2,61/2,61	2,61/2,61	2,61/2,89	2,5/2,67	2,74/2,98
Supply voltage		A, V, Hz	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50	1, 220-240, 50
Power consumption	Cooling / Heating	W/W	786/808	735/745	1060/1100	1800/1800	2250/2250
Operating current	Cooling / Heating	A	3,84/3,24	6,3/6,5	4,8/5	8,35/8,63	8,9/9,5
Indoor unit
Air Consumption		m3 / h	400	400	550	650	850
Noise level	(Max / High / Wed / Min)	dB (A)	40/37/35/32	40/37/35/32	42/39/36/33	42/39/36/33	49/45/41/37
Dimensions	without packing	mm	730×254×184	730×255×180	785×260×185	848 ×274×190	945×298×211
	with packaging	mm	793×258×343	793×258×343	870×350×255	926×267×371	1013×383×300
Weight	Net / Gross	kg	8/10,5	8/10,5	9/12	10/13	13/17
Outdoor Unit
Noise level		dB (A)	50	50	52	55	56
The diameters of pipelines	gas	mm (inch)	9,52 (3/8)	9,52 (3/8)	12 (1/2)	12 (1/2)	12 (1/2)
	fluid	mm (inch)	6 (1/4)	6 (1/4)	6 (1/4)	6 (1/4)	6 (1/4)
Max. length / height difference		m	5/15	10/15	10/20	10/25	10/25
Dimensions	without packing	mm	720×428×255	660×420×255	780×535×265	848×540×320	955×700×396
	with packaging	mm	768×490×353	660×420×255	820×580×355	881×363×595	1029×458×750
Weight	Net / Gross	kg	25,5/28	29,5/33,5	30/34	43/48	56/61
Operating temperature	indoor unit	ºC	16ºC~30ºC	16ºC~30ºC	16ºC~30ºC	16ºC~30ºC	16ºC~30ºC
	outdoor Unit (cooling)	ºC	18ºC~43ºC	18ºC~43ºC	18ºC~43ºC	18ºC~43ºC	18ºC~43ºC
	outdoor air (heating)	ºC	-7ºC~24ºC	-7ºC~24ºC	-7ºC~24ºC	-7ºC~24ºC	-7ºC~24ºC



Features and Options

	Highly efficient dual filter
	Function Anti Mold
	The optimum air distribution
	Comfort sleep mode
	Hot start
	Turbo mode
	Auto-control mode
	LED status display
	Auto restart
	24-hour timer
	Automatic self-test function. protection
	R-22 - most wanted refrigerant
